What it is

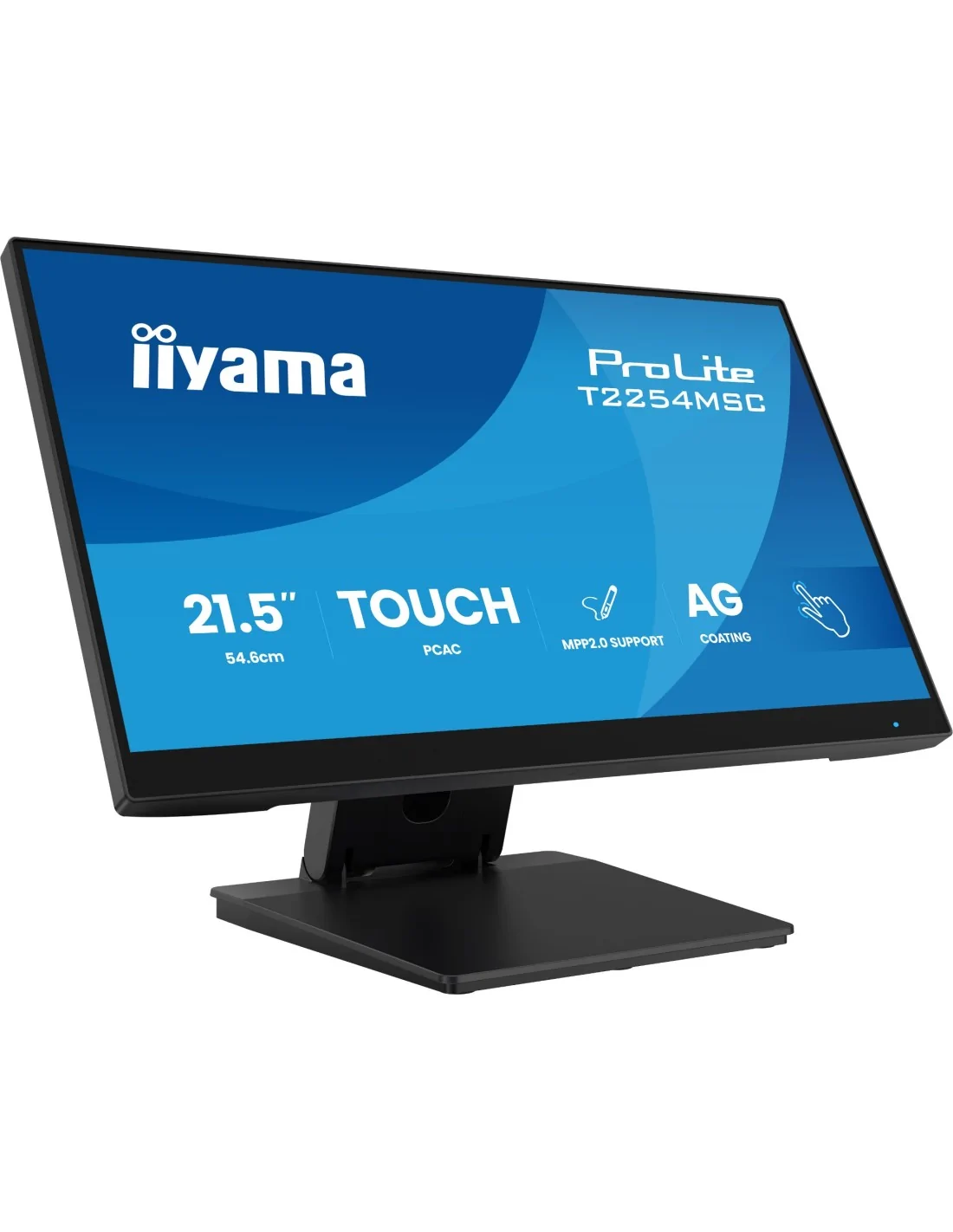

The iiyama T2254MSC-B2AG is a 21.5-inch touchscreen monitor featuring a PCAP 10-point multi-touch panel with anti-glare coating and active stylus support using MPP 2.0 technology.
Who it's for
This model fits users needing a responsive touchscreen for interactive tasks in offices, retail, or public spaces, where precision touch and stylus input improve workflow and ease of use.
Why it's good
It offers Full HD resolution with 300 cd/m² brightness and displays 16.7 million colours. The flat IPS panel has wide viewing angles, reduces reflections, and supports HDCP content protection.
When to choose it
Choose this monitor when you want a mid-sized touchscreen with stylus capability, good visibility under various lighting, and require reliable multi-touch support without overspending on larger or higher-res displays.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 100 Hz |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.082 x 0.082 mm |
| Horizontal scan range | 30 - 120 kHz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 4 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1300:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 300 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Mean time between failures (MTBF) | 50000 h |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Design | |
| Market positioning | Business |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 2 |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Number of downstream ports | 2 |
| Technical details | |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 50000 h |
| HDMI | Yes |
| Product colour | Black |
| User controls | Picture adjust (brightness, contrast, eco, adv. contrast, Overdrive, X-Res technology,, black tuner), color settings (6-axis, i-Style color, blue light reducer, gamma, RGB range), color temperature), OSD (horizontal position, vertical position, rotate, time, background, DDC/CI control, display information), language, miscellaneous (sharpness. video mode adjust, opening logo, power led, usb charge), input select, audio settings (volume, mute audio), recall |
| Front bezel colour | Black |
| Sustainability certificates | EPEAT, ErP, EPEAT Silver |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Packaging content | Screwdriver |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Active display area (W x H) | 476 x 268 mm |
| Weight (with stand) | 4.9 kg |
| Touch method | finger, glove (latex), capacitive stylus |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 5 - 90° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 11.2 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Weight & dimensions | |
| Width (with stand) | 489 mm |
| Depth (with stand) | 241 mm |
| Height (with stand) | 355 mm |
| Weight (with stand) | 4.9 kg |
| Weight (without stand) | 2.9 kg |
| Package width | 570 mm |
| Package depth | 151 mm |
| Package height | 367 mm |
| Package weight | 7.6 kg |
| Width | 489 mm |
| Weight | 4.9 kg |
| Height | 355 mm |
| Depth | 241 mm |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 151 mm |
| Package height | 367 mm |
| Package weight | 7.6 kg |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Sustainability | |
| Sustainability certificates | EPEAT, ErP, EPEAT Silver |
| Other features | |
| Packaging content | Screwdriver |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Active display area (W x H) | 476 x 268 mm |
| USB ports quantity | 2 |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA |
| User controls | Picture adjust (brightness, contrast, eco, adv. contrast, Overdrive, X-Res technology,, black tuner), color settings (6-axis, i-Style color, blue light reducer, gamma, RGB range), color temperature), OSD (horizontal position, vertical position, rotate, time, background, DDC/CI control, display information), language, miscellaneous (sharpness. video mode adjust, opening logo, power led, usb charge), input select, audio settings (volume, mute audio), recall |
| Touch method | finger, glove (latex), capacitive stylus |
| Width | 489 mm |
| Weight | 4.9 kg |
| Height | 355 mm |
| Depth | 241 mm |
| Positional accuracy | 2 mm |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Control panel | Joystick / power button - power/menu, up/input select, down, left/eco/i-Syle color/blue light reducer, right/volume |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA |
Please get in touch with Creative Systems to discuss fit and compatibility for your setup before ordering this touchscreen monitor.
