What it is

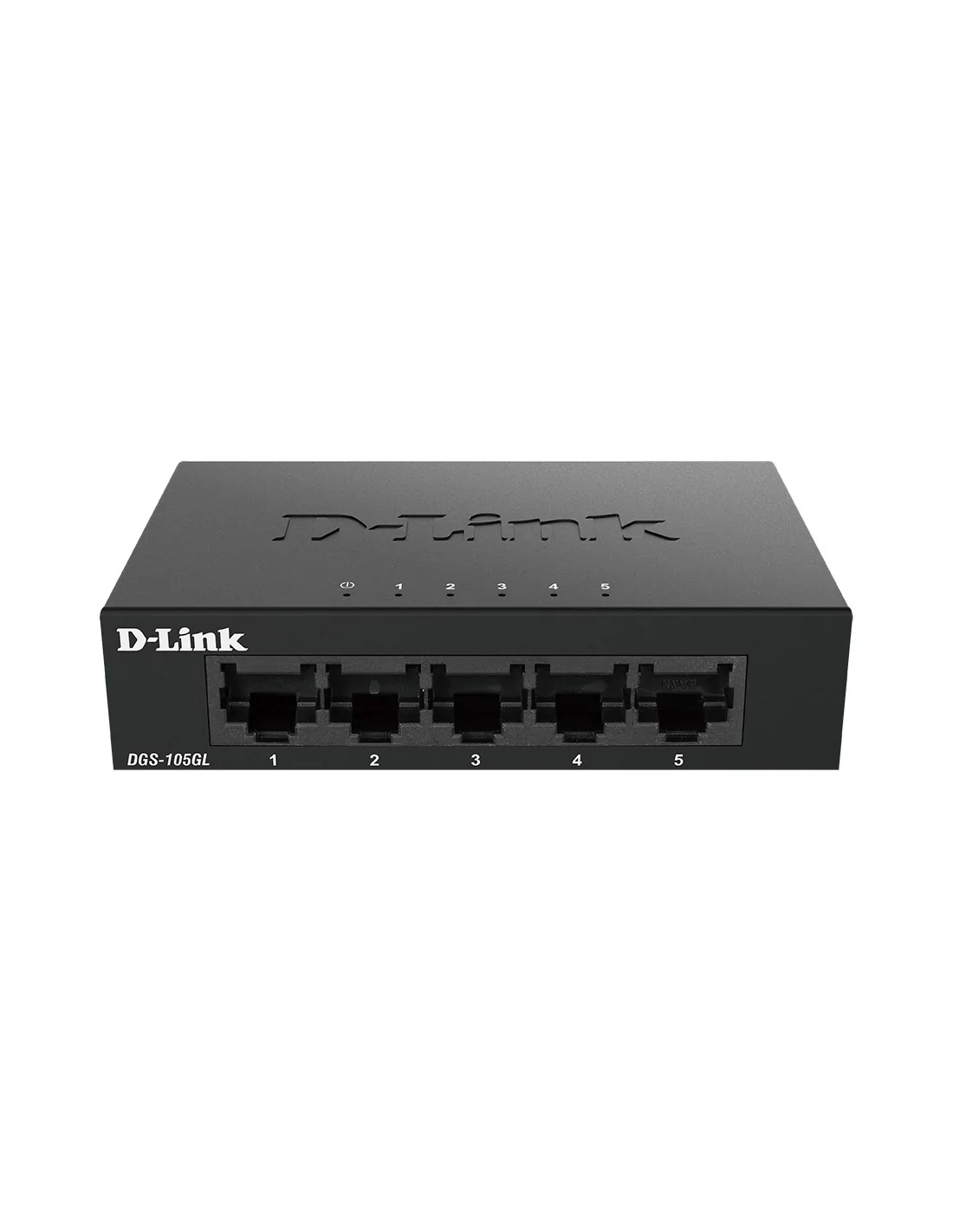

The D-Link DGS-105GL/B is a compact, unmanaged 5-port Gigabit Ethernet switch supporting 10/100/1000 Mbps LAN connections.
Who it's for
This switch is aimed at small offices or home networks needing simple gigabit connectivity without advanced management features.
Why it's good
It offers plug-and-play setup, supports Quality of Service (QoS) for traffic prioritisation, and fits neatly within limited spaces at 100 x 64 x 24 mm.
When to choose it
Choose this if you want a reliable, basic gigabit LAN switch with low power consumption and no management complexity.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 9216 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Form factor | Desktop |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Certification | CE; FCC; RoHS |
| Performance | |
| Mean time between failures (MTBF) | 1455562 h |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 3.55 W |
| Input current | 1 A |
| DC input voltage | 5 V |
| Power source | DC |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 12.11 BTU/h |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 64 mm |
| Height | 24 mm |
| Weight | 160 g |
| Technical details | |
| Form factor | Desktop |
| Product colour | Black |
| Stackable | Yes |
| Mean time between failures (MTBF) | 1455562 h |
| Housing material | Metal |
| Compliance certificates | CE, RoHS |
| Certificates | |
| Certification | CE; FCC; RoHS |
| Compliance certificates | CE, RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Contact Creative Systems to verify if this unmanaged switch fits your network requirements and is in stock.
