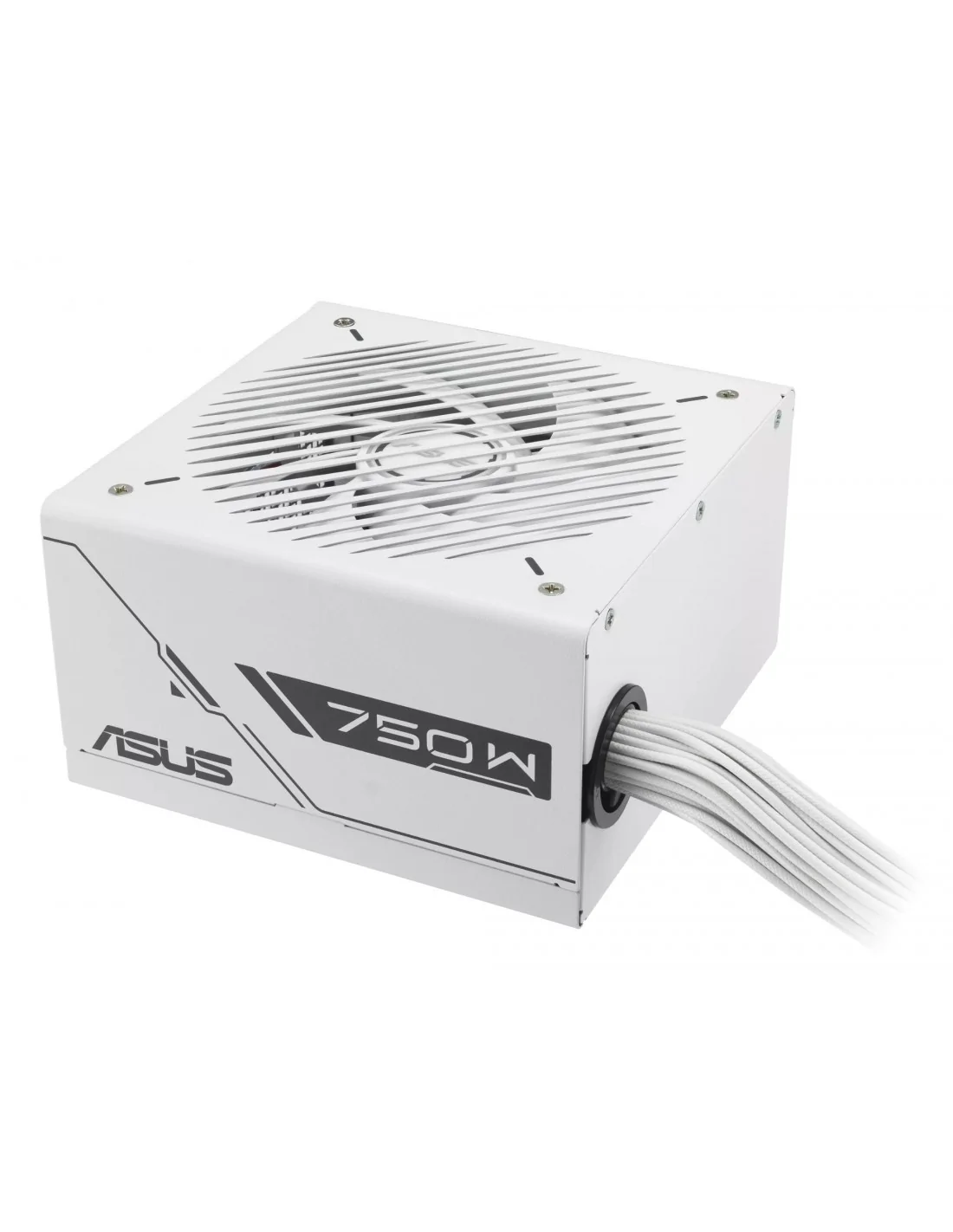

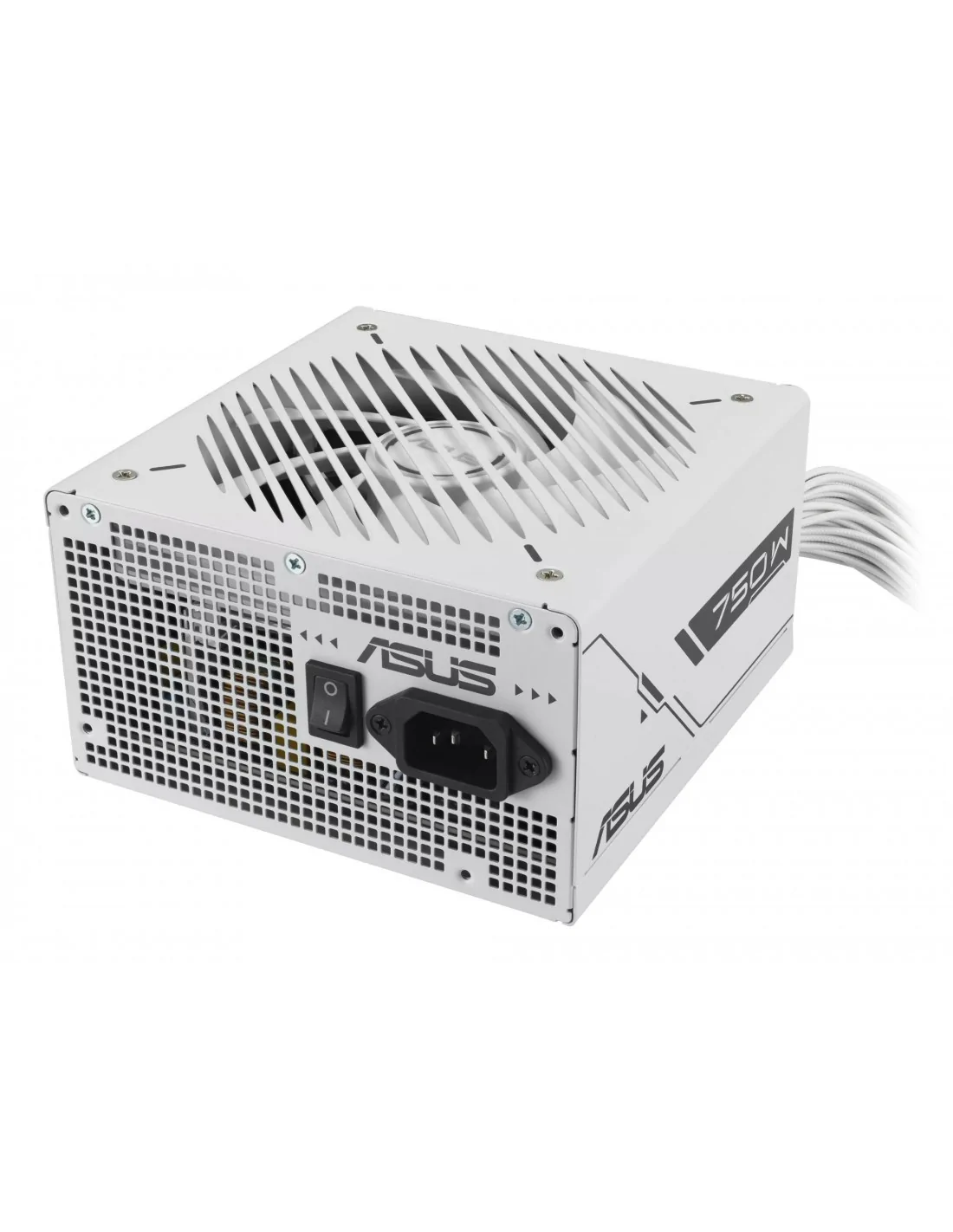

ASUS Prime 750W Bronze White Edition PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Mean time between failures (MTBF) | 120000 h |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Product colour | White |
| Fan diameter | 13.5 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power cable length | 120,400 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 80 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.2 kg |
| Packaging data | |
| Package depth | 196 mm |
| Package width | 340 mm |
| Package height | 115 mm |
| Package type | Box |
| Package weight | 3 kg |
| Certificates | |
| 80 PLUS certification | 80 PLUS Bronze |
