What it is

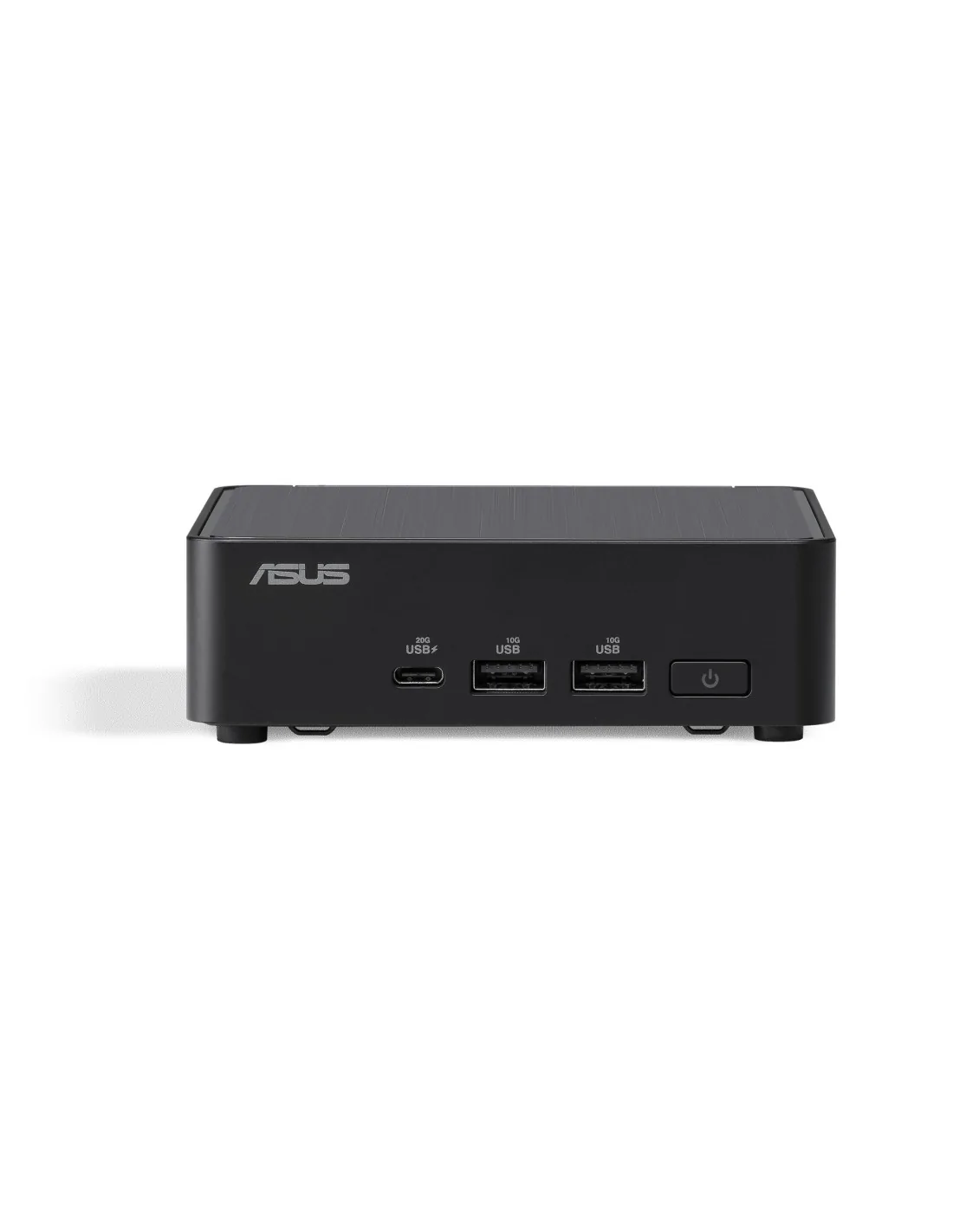

The ASUS NUC 14 Pro is a fully configured mini PC built around the Intel Core Ultra 7 155H processor. It ships with 32GB of DDR5 RAM, a 512GB NVMe SSD, and Windows 11 Pro — ready to deploy straight out of the box. The whole unit measures 117 × 112 × 37 mm and weighs just 500g.
Who it's for
This suits businesses, schools, and professional environments where desk space is limited but computing performance isn't negotiable. It's a strong fit for digital signage control, meeting room PCs, back-office workstations, and any role that needs a reliable Windows Pro machine without a full tower taking up space.
Why it's good
The Core Ultra 7 155H runs up to 4.8GHz across 16 cores and 22 threads — that's real headroom for multitasking and demanding applications. Memory is upgradeable to 96GB via two SO-DIMM slots, so the unit won't become a bottleneck as workloads grow. Connectivity is well covered: 2× Thunderbolt 4, 2× HDMI 2.1, 3× USB-A 3.2 Gen 2, 2.5GbE LAN, and Wi-Fi 6E. The built-in Intel AI Boost NPU also supports Windows Studio effects and AI inference frameworks — useful if that's on your roadmap. A Kensington lock slot adds basic physical security for shared spaces.
When to choose it
Choose this when you need a capable, space-saving Windows 11 Pro desktop and don't need a discrete GPU. The dual HDMI 2.1 outputs make it a solid pick for dual-display setups or AV control applications. If your use case needs dedicated graphics, a larger workstation is the better call — but for most business and professional AV roles, this covers the brief at a compact footprint.
Specifications
| Processor | |
|---|---|
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor model | 155H |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.8 GHz |
| Processor threads | 22 |
| Processor cores | 16 |
| Processor family | Intel Core Ultra 7 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 96 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 2500 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Performance | |
| Market positioning | Everyday |
| Product type | Mini PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Power | |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 500 g |
| Packaging content | |
| Display included | No |
| Display | |
| Display included | No |
| Other features | |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
