What it is

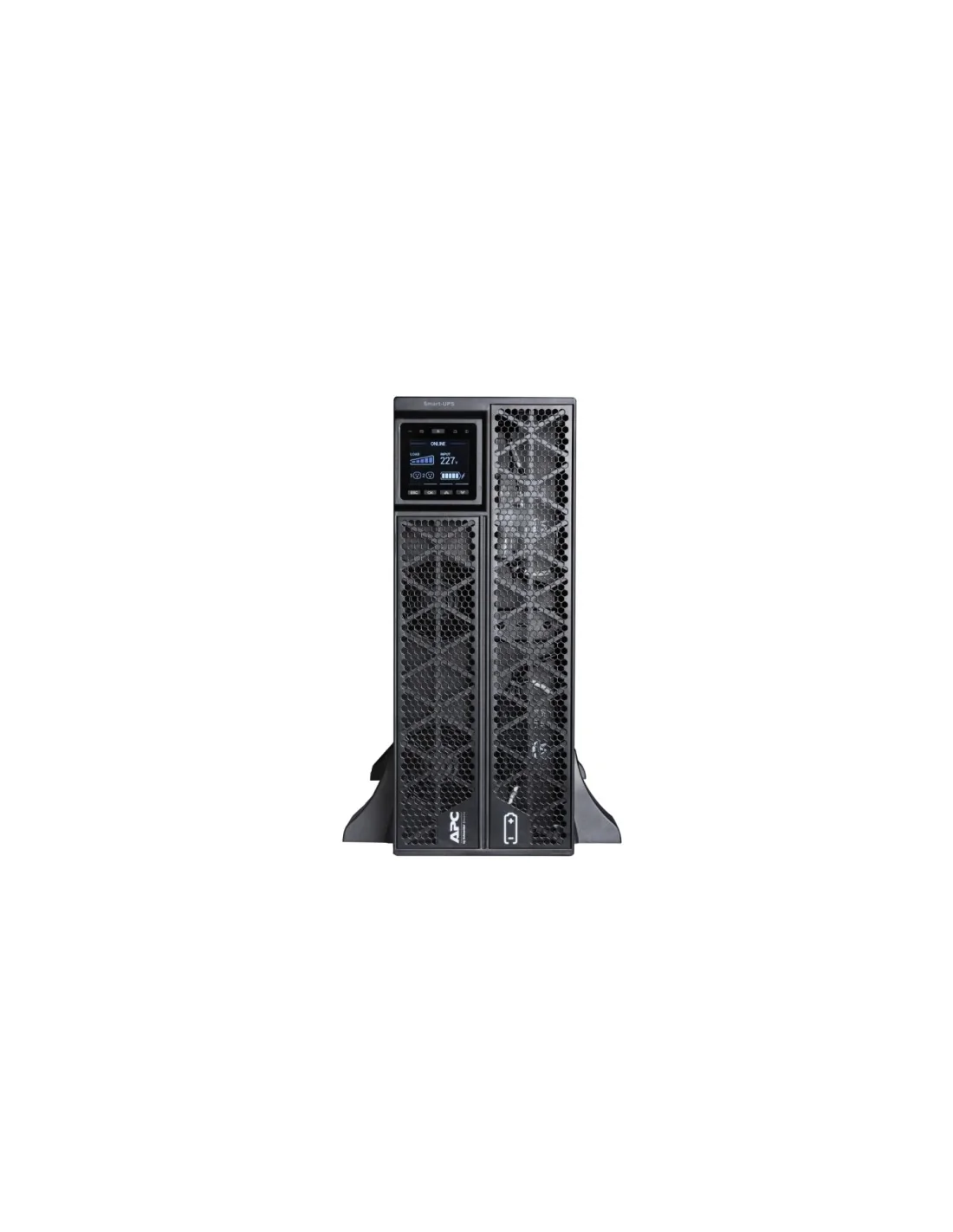

The APC SRTG6KXLI is a 6 kVA / 6 kW online uninterruptible power supply designed for critical loads. It operates within input voltages of 100-285V and supports a broad frequency range of 40-70 Hz. The unit includes a 600J surge energy rating and an LCD for status information.
Who it's for
This UPS suits data centres, server rooms, or network closets requiring reliable, clean power to protect sensitive equipment from outages or disturbances. It is intended for setups needing continuous power without interruption.
Why it's good
With online double-conversion topology, the UPS supplies consistent voltage output with low total harmonic distortion, enhancing equipment protection. Its wide input voltage tolerance helps avoid battery use during common utility fluctuations. The LCD provides operational feedback and EPO capability adds safety.
When to choose it
Select this UPS when protecting medium to large IT infrastructure or other critical electrical loads where stable power, surge protection, and clear monitoring are necessary.
Specifications
| Power | |
|---|---|
| Output power | 6000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| ECO mode | Yes |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| LED indicators | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 6000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 6 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartConnect port | No |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery voltage | 96 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, EN/IEC 62040-1 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Certificates | |
| Certification | CE, EN/IEC 62040-1 |
| Packaging content | |
| Management card included | Yes |
| Weight & dimensions | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 275 mm |
| Weight | 51.9 kg |
| Width | 440 mm |
| Package weight | 59 kg |
| Height | 178 mm |
| Depth | 620 mm |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 275 mm |
| Package weight | 59 kg |
| Management card included | Yes |
Please ask Creative Systems for full compatibility and installation advice before ordering this UPS.
