What it is

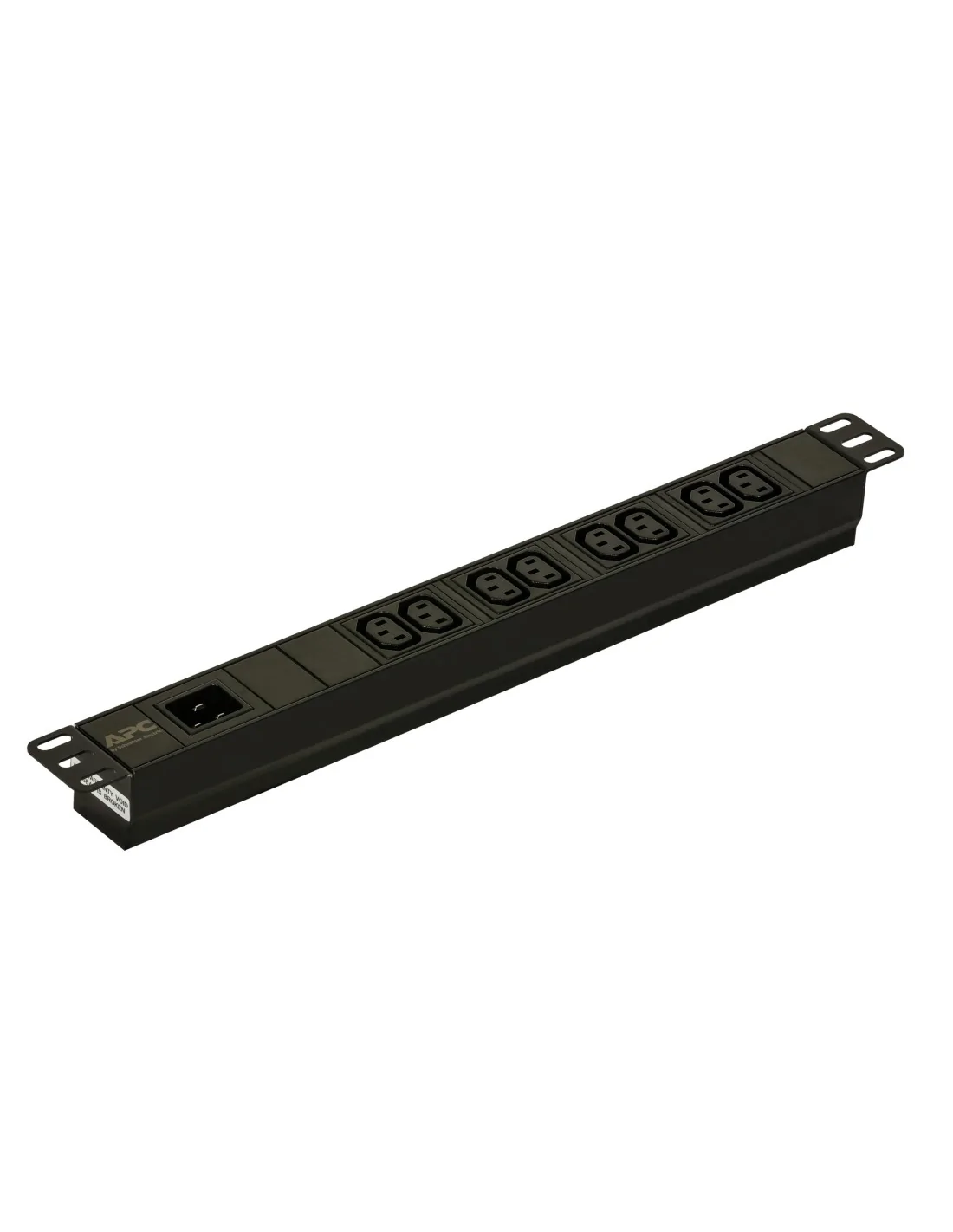

The APC EPDU1016B is a basic horizontal rack-mounted power distribution unit designed for 1U rack spaces. It provides single-phase 16 A power at 3.7 kW, with 8 C13 outlets and an IEC60320 C20 inlet.
Who it's for
This PDU is aimed at environments needing compact power distribution within a 1U rack space, suitable for smaller racks or where outlet counts are moderate.
Why it's good
Its horizontal mounting fits standard 19-inch racks cleanly, and CE and TUV certification confirm adherence to safety standards. The black housing blends into typical data centre equipment.
When to choose it
Choose this if your rack space is limited to 1U and your device count fits within eight outlets, and you prefer a horizontal mount for neat cable management.
Specifications
| Design | |
|---|---|
| On/off switch | No |
| Type | Single-phase |
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | CE, TUV |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Features | |
| Cable length | 2.5 m |
| Certification | CE, TUV |
| Daisy chain | No |
| Ergonomics | |
| Cable length | 2.5 m |
| Power | |
| Maximum power | 3680 W |
| Nominal input voltage | 200/208/230 V |
| Nominal output voltage | 208/230 V |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CE, TUV |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 580 g |
| Width | 482 mm |
| Depth | 44 mm |
| Height | 44 mm |
| Package width | 560 mm |
| Package depth | 80 mm |
| Package height | 150 mm |
| Package weight | 1.18 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 80 mm |
| Package height | 150 mm |
| Package weight | 1.18 kg |
| Technical details | |
| Compliance certificates | RoHS |
