What it is

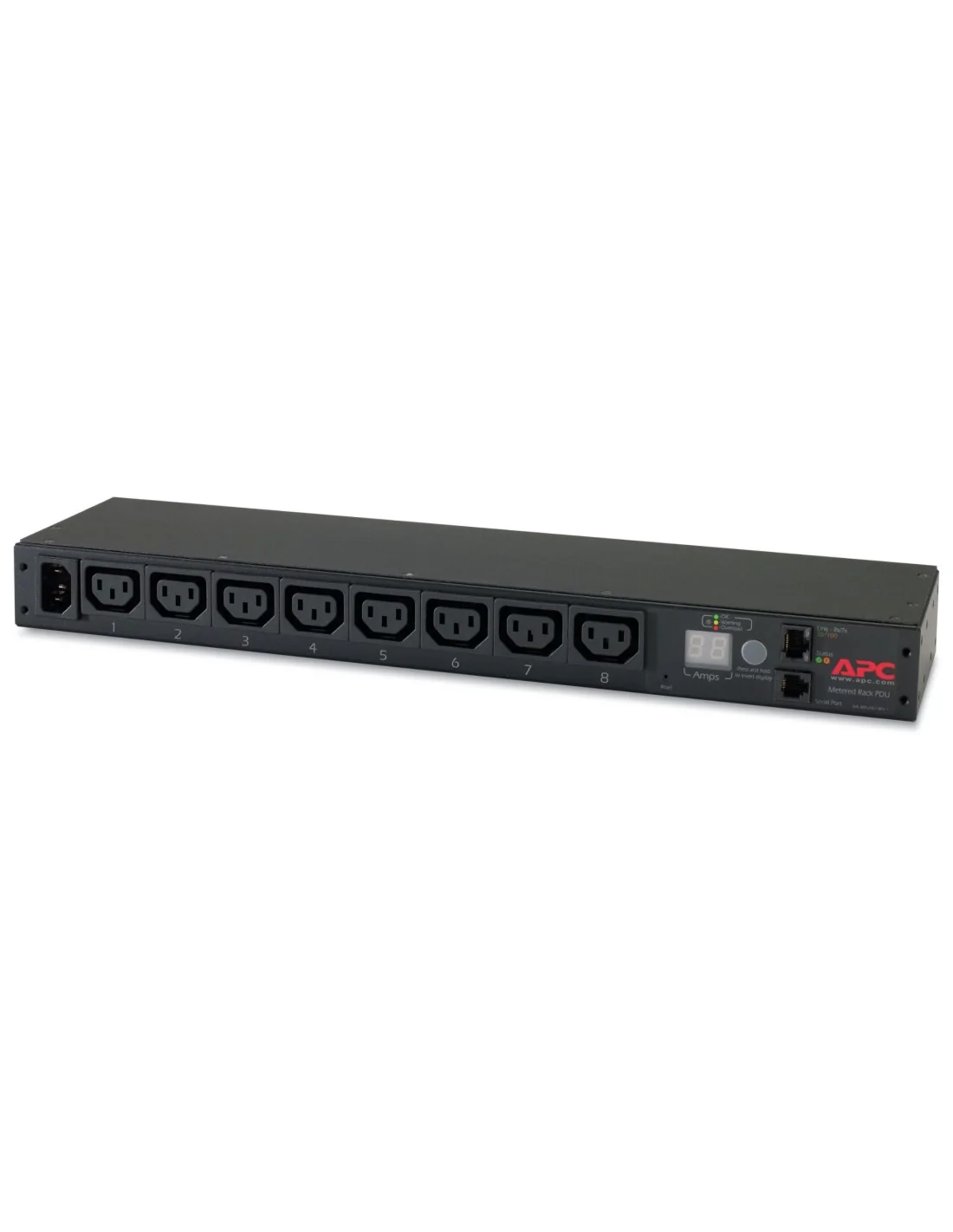

The APC AP7820B is a 1U rack-mount metered power distribution unit providing 8 IEC 320 C13 outlets and an IEC-320 C14 inlet, supporting 12A at 208V or 10A at 230V.
Who it's for
This PDU is for IT environments needing dependable power distribution with monitoring capabilities in a standard 1U rack space.
Why it's good
It offers versatile mounting options and carries multiple certifications, ensuring safe operation and compatibility with common server racks.
When to choose it
Consider this PDU when you require a metered outlet distribution solution with IEC C13 outlets for your rack-mounted hardware within a compact footprint.
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Input connection type | IEC-320 C14 |
| Features | |
| Cable length | 1.98 m |
| LED indicators | Yes |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| Cable length | 1.98 m |
| LED indicators | Yes |
| Power | |
| Maximum power | 2300 W |
| Nominal input voltage | 208-230 V |
| Nominal output voltage | 208-230 V |
| Maximum current | 15 A |
| Maximum total current draw per phase | 10 A |
| Maximum input current per phase | 15 A |
| Load capacity | 2300 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 1.73 kg |
| Width | 444 mm |
| Depth | 102 mm |
| Height | 44 mm |
| Package width | 470 mm |
| Package depth | 337 mm |
| Package height | 64 mm |
| Package weight | 2.91 kg |
| Packaging data | |
| Package width | 470 mm |
| Package depth | 337 mm |
| Package height | 64 mm |
| Package weight | 2.91 kg |
| Technical details | |
| Compliance certificates | RoHS |
Discuss your rack requirements with Creative Systems to confirm this model suits your setup and to explore current availability.
